3.7 Volt E-Cig Big Battery / Mini Electronic Cigarette Battery

Product Categories

Guang Zhou Sunland New Energy Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : shenzhen

Brand Name : TAC

Certification : UL,ROHS

Model Number : PLIC0375

MOQ : 5000pcs

Price : Price Negotiable

Packaging Details : 500pcs/carton

Delivery Time : 14Days

Payment Terms : TT, LC, Paypal, etc

Supply Ability : 100000Piece/days

Product Name : big ego battery

Nominal Voltage : 3.7V

Maximum Continuous Operation Current : 1300mA

Length : Max.62.5mm

D : Max.16.0mm

Storage Temperature Range : Less than 1 month: -20~40℃

Contact Now

3.7 Volt E-Cig Big Battery / Mini Electronic Cigarette Battery

Detailed Product Description

The model name is LIR16600/1300mAh,The Vol is 3.7V
Repeated use or Single use are available
There are LIR08500P,LIR08570P,LIR08600P,LIR75500,LIR08600P,LIR13450 For your choic

Specification:

No.	Item	General Parameter		Remark
1	Rated Capacity	Typical	1340mAh	Standard discharge(1.2A) after Standard charge
1	Rated Capacity	Minimum	1300mAh	Standard discharge(1.2A) after Standard charge
2	Nominal Voltage	3.7V		Mean Operation Voltage
3	Voltage at end of Discharge	3.0V		Discharge Cut-off Voltage
4	Charging Voltage	4.2±0.05V
5	Internal Impedance	≤55mΩ		Internal resistance measured at AC 1KH_Zafter 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times
6	Standard charge	Constant Current 0.5C₅A Constant Voltage 4.2V 0.01 C₅A cut-off		Charge time : Approx 3.0h
7	Standard discharge	Constant current 0.5C₅A end voltage 3.0V
8	Maximum Continuous Operation Current	1300mA
9	Operation Temperature Range	Charge: 0~45℃		60±25%R.H. Bare Cell
		Discharge: -10~60℃
10	Storage Temperature Range	Less than 1 month: -20~40℃		60±25%R.H. at the shipment state
		less than 6 months: -10~35℃
11	Cell Dimension	Length:Max.62.5mm		Initial Dimension
		D:Max.16.0mm

Pictures:

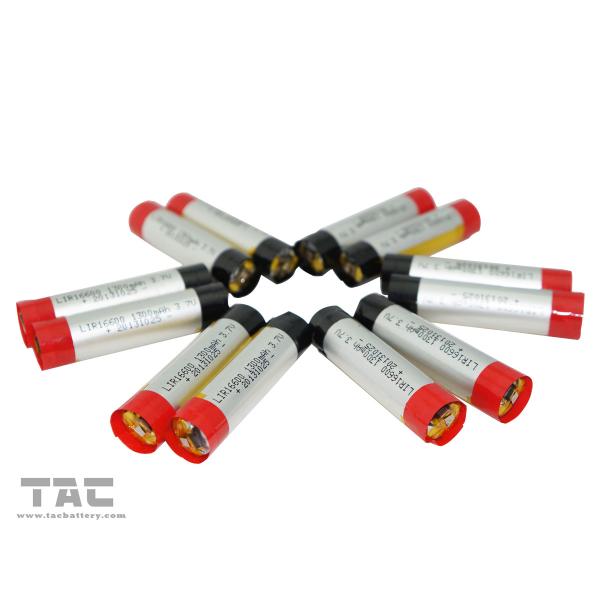

Big Ego Battery LIR16600/1300mAh E-Cig Big Battery For Herbal Cigarettes

Application:

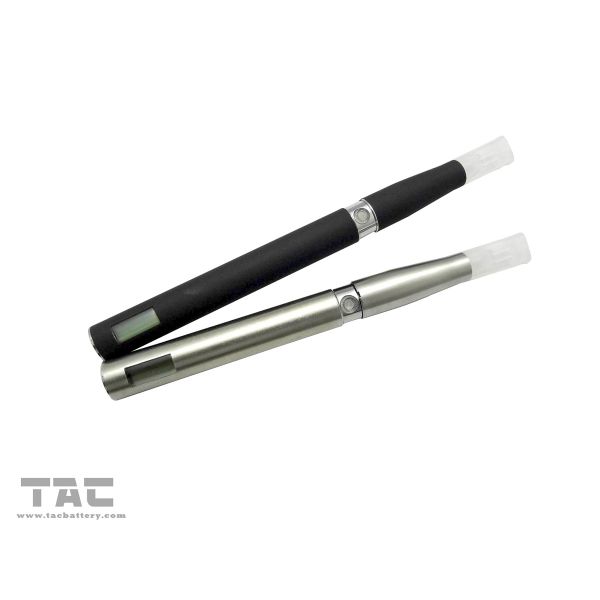

Big Ego Battery LIR16600/1300mAh E-Cig Big Battery For Herbal Cigarettes
